Field fence is a kind perimeter woven wire mesh fence for farming animals: cattles, horses, etc. This metal fence has high tensile strength and graduated opening specially designed for animal farming uses. According to weaving types, Dezhou Fence Staple Factory supplies two kinds: hinge joint and fixed knotted. The field fences offer high tensile strength and stretching resistance with jointed or knotted structure of wires. Can be used together with barbed wire. Installation is easily done with gloves and hammers to fix the fencing wire to wooden posts / poles with sharp pointed stapling wires.
Materials: Low carbon steel wire, high carbon steel wire and high tensile strength wire.
Finishes: EG or HDG.
Zinc coating: For EG, normally 60-100g per square meter, for HDG, 230-240g per square
Tensile strength: horicontal wire: 80-90kgs mm2, vertical wire: 40-50 kgsmm2
Type of vertical wire: folded and straight
Fence length: 165 inch (50m) or 330 inch (100m)

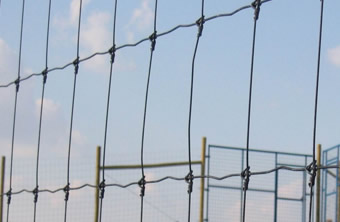

Hot Dipped Galvanized HDG Hinge Joint Deer Fencing
Style |
Totalweight (kg) |
Edge Wire Dia. (mm) |
Inner Wire Dia. (mm) |
|
7 / 150 / 813 / 50 |
102 + 114 + 127 + 140 + 152 + 178 |
20.8 |
2.5 |
2.0 |
8 / 150 / 813 / 50 |
89(75) + 89 + 102 + 114 + 127 + 140 + 152 |
20.8 |
2.5 |
2.0 |
8 / 150 / 902 / 50 |
89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 |
21.6 |
2.5 |
2.0 |
8 / 150 / 1016 / 50 |
102 + 114 + 127 + 140 + 152 + 178 + 203 |
22.6 |
2.5 |
2.0 |
8 / 1 50 / 1143 / 50 |
114 + 127 + 140 + 152 + 178 + 203 + 229 |
23.6 |
2.5 |
2.0 |
9 / 150 / 991 / 50 |
89(75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 |
23.9 |
2.5 |
2.0 |
10 / 150 / 1245 / 50 |
102 + 114 + 127 + 140 + 152 + 178 + 203 + 229 |
26 |
2.5 |
2.0 |
10 / 150 / 1194 / 50 |
89(75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 |
27.3 |
2.5 |
2.0 |
10 / 150 / 1334 / 50 |
89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 + 229 |
28.4 |
2.5 |
2.0 |
10 / 150 / 1442 / 50 |
89(75) + 89 + 102 + 114 + 127 + 140 + 152 + 178 + 203 + 229 |
30.8 |
2.5 |
2.0 |

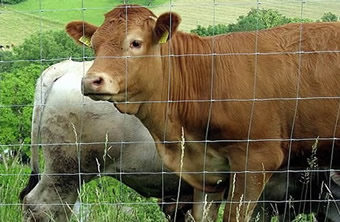

Galvanized EG Wire Fixed Knot Cattle Fence
The metal grid fence has simple structure and easy maintenance, short time installation.
| Field fence (Deer Fence, sheep fence, cattle fence) | |
| Material | High-strength galvanized iron wire; High-strength zinc plated steel |
| Mesh | (cm) 15-14-13-11-10-8-6 (longitude); (cm) 15-18-20-40-50-60-65 (woof) |
| Height | 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 1.6m, 1.8m, 2.0m, 2.4m |
| Length | 115feet (50m), 330feet (100m) |
| Top and bottom wire diameter | 2.0 – 3.5mm |
| In wire diameter | 1.8 – 2.5mm |
| Volume diameter | 270mm (50m/roll) |
| However, the mesh, height, length, volume diameter can be available according to your request. | |
