With factory in Dezhou, we provide economic cost fencing staple for wire mesh fence manufacturers and users in the world.
Besides special U shaped nails, we also supply other fencing hardeware accessories and common nails processed from steel wire rods.
Galvanized Steel Common Fastening Nails:
Specification:
| size | Length, inches |
Number in a pound |
Safe Lateral Load | |
| Required penetration. inches |
load, pounds |
|||
| 2d | 1 | 876 | ||
| 3d | 1¼ | 568 | ||
| 4d | 1½ | 316 | ||
| 5d | 1¾ | 271 | ||
| 6d | 2 | 181 | 1 | 70 |
| 7d | 2¼ | 161 | ||
| 8d | 2½ | 106 | 1¼ | 100 |
| 9d | 2¾ | 96 | ||
| 10d | 3 | 69 | 1½ | 120 |
| 12d | 3¼ | 64 | 1 5/8 | 130 |
| 16d | 3½ | 49 | 1 5/8 | 160 |
| 20d | 4 | 31 | 2 | 190 |
| 30d | 4½ | 24 | 2¼ | 230 |
| 40d | 5 | 18 | 2 1/3 | 270 |
| 50d | 5½ | 14 | 2¾ | 310 |
| 60d | 6 | 11 | 3 | 360 |

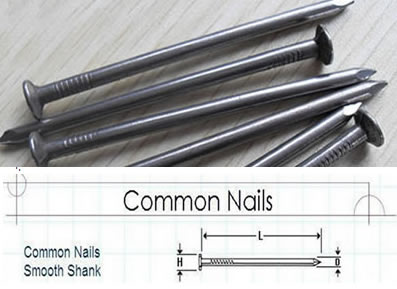

Common nails for general industrial uses are made with round caps, small head, clout head and countersunk checkered heads.
Hot Dipped Galvanized Common Round Iron Nails for Building and Wooden Casing:
Common Nails Technical Information:
Surface treatment: polished or electro galvanized;
Length: 1/2" - 8" ;
diameter of the shank: BWG5 - BWG17.
Packing:
25kgs/carton in bundle,
5kgs/box, 4 boxes/carton
50kgs/bag.
Gross weight: 7kgs/carton with 16boxes
Electro Galvanized Chequered Head Common Nails
Material: Q195, Q215 wire rod as high-quality low-carbon-steel
Finish: Polished, electric galvanized, hot dipped galvanized.
Head: common head, countersunk head, lose head, flat countersunk chequerred head
Shank: plain, round
Point: diamond point, round point
Standing: BS EN 10230-1:2000, normal
Packing: plastic bag,carton box,wooden box or according to your requirement.
